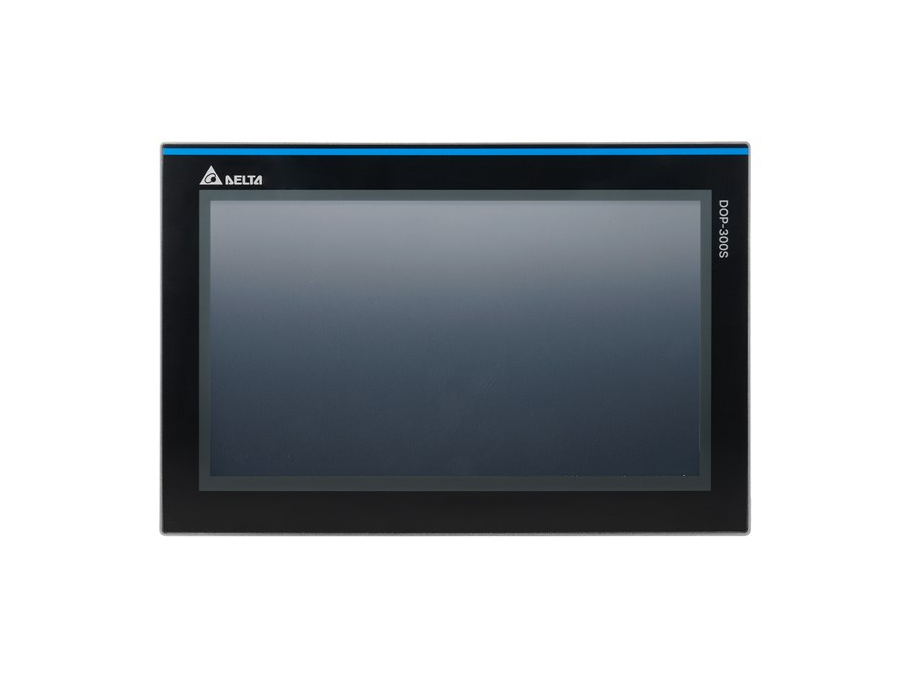

HMI DOP-300
HMI DOP-300
Cantidad
El HMI Estándar está diseñado con servicios en la nube integrados y conectividad fluida, permitiendo establecer una solución integral de IIoT (Internet Industrial de las Cosas). La pantalla táctil completamente laminada y el ángulo de visión ultra amplio de 170° mejoran significativamente la experiencia del usuario.
| DOP-3S07S3E2 | DOP-3S10S3E2 | |
| Display Type | 7" TFT LCD (24 bits) | 10.1" TFT LCD (24 bits) |
| Resolution (Pixels) |
1,024 x 600 | |
| Back Light | LED Back Light (half-life > 20,000 hours at 25°C or 77°F) | |
| Display Area | 154.21 x 85.92 mm | 222.72 x 125.28 mm |
| Brightness | 400 cd/㎡ (Typ.) | |
| CPU | ARM Cortex-A7 Dual Core 1.2GHz | |
| Flash ROM | 512 Mbytes | |
| RAM | 512 Mbytes | |
| Touch Panel | Four-wire resistor | |
| Viewing Angle | 85/85/85/85 | |
| Internet Interface |
2 Port, 10/100 Mbps Auto detection (with built-in isolated circuits) | |
| USB Host | 1 Port USB Ver 2.0 Type A 5 V / 1000 mA 1 Port USB Ver 2.0 Type C 5 V / 500 mA |
|
| USB Slave | N/A | |
| SD | Micro SD | |
| Serial Communication Port |
COM1: RS-232 (supports flow control) COM2: RS-232 / RS-485 COM3: RS-422 / RS-485 |
|
| Certification | CE / UL | |
| Operation Temperature |
0 ~ 50°C | |
| Storage Temperature |
-20 ~ 60°C | |
| Mounting Dimensions (W x H, mm) |
186.8 x 126.8 | 255 x 170 |
